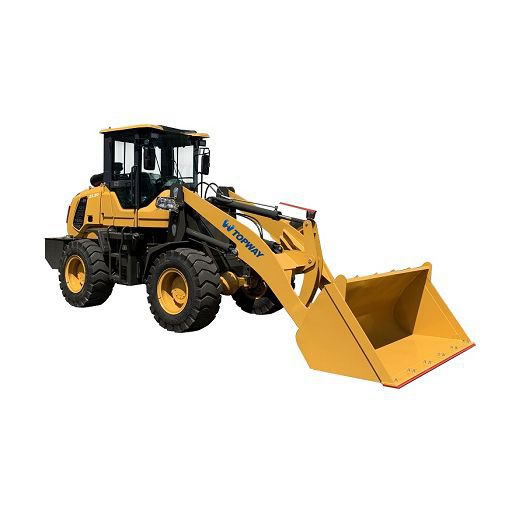

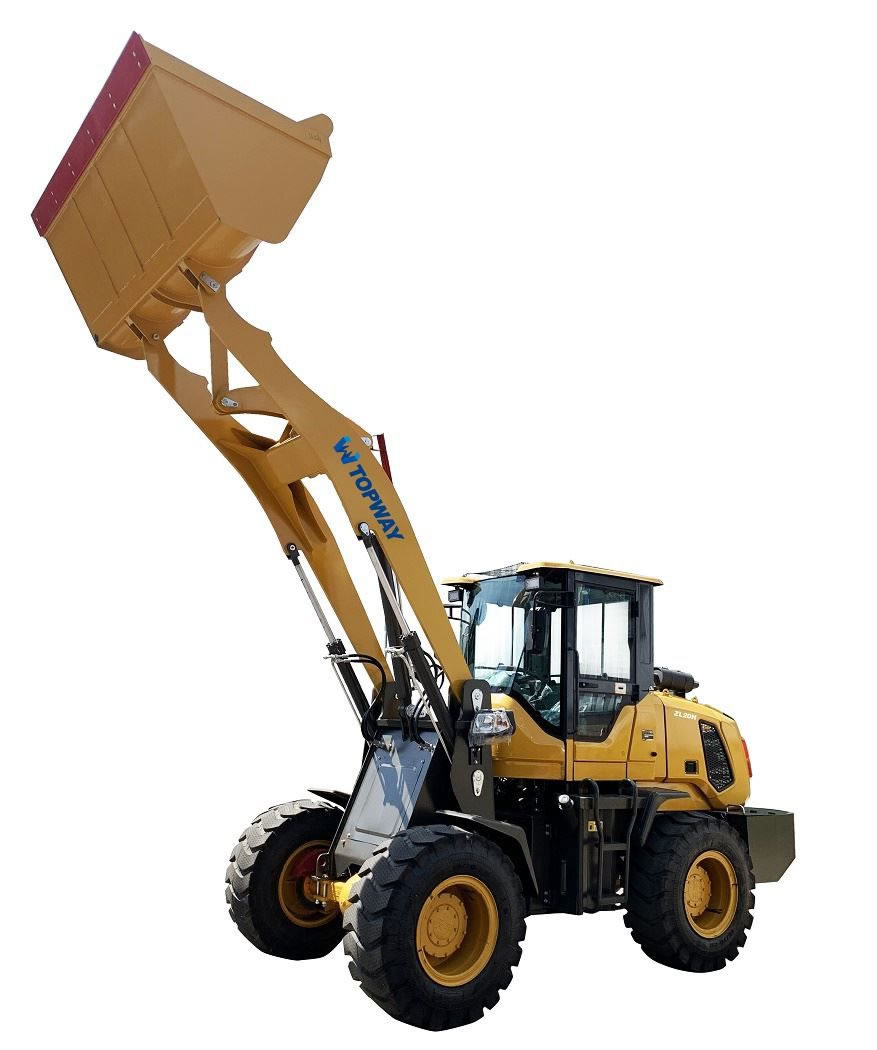

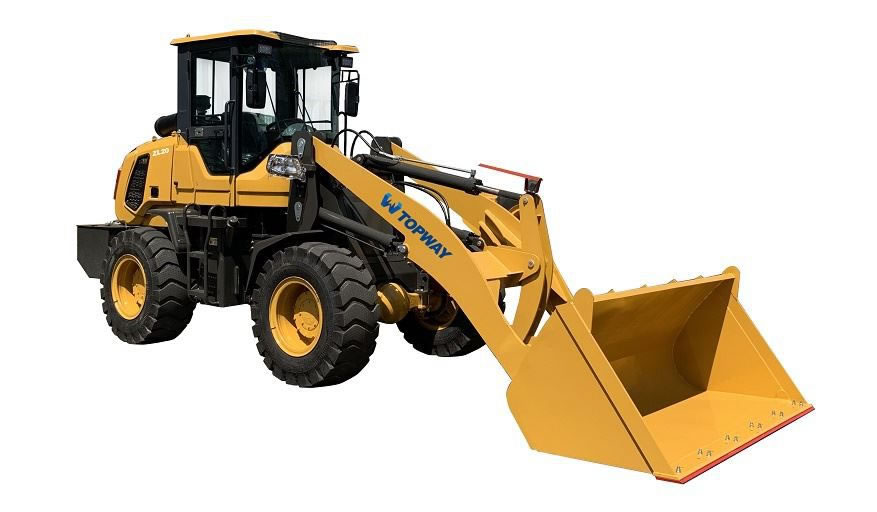

ZL20 agriculture economy type wheel loader with Yunei engine, A/C and Joystick, low price, good performance, very cost-effective, good stability, your first choice
Main Features
1. This small loader have streamlined appearance design, elegant and generous.
2. The working device bucket of this mini loader can be leveled automatically, computer is adopted to optimize design.
3. The pay loader have new type luxury cabin with adjustable seat and steering wheel, which can also equipped with air conditioner, back camera, more comfortable and safe
4. The shovel loader can allocate kinds of attachments, such as pallet fork, pipe fork, snow blade, sweeper, lawn mower etc.
5. The front end loader can according to customer's require to optional color, engine, torque converter
Specifications
Model | ZL20 |
Rated loading | 2000kg |
Overall weight | 5000kg |
Rated bucket capacity | 1.0m3 |
Maximum traction force | ≥58KN |
Maximum breakout force | ≥55KN |
Maximum grade ability | 30℃ |
Maximum dump height | 3100mm |
Maximum dump reach | 780mm |
Overall dimension (L*W*H) | 6200*2400*2950mm |
Minimum turning radius | 4750mm |
Engine Model | YN38GBZ |
Type | Inline water cooled, four stroke |
Rated power | 76kw |
Maximum torque | 500N.m |
Torque converter | ZL10 |
Gearbox mode | Countershaft power-shift |
Gear shift | 2 forward shift 2 reverse shift |
Maximum speed | 28km/h |
Main reducing mode | Circular Arc Bevel gear, single stage |
Decelerating mode | Single stage planetary type |
Wheel base (mm) | 2400mm |
Wheel tread | 1528mm |
Ground clearance | 310mm |
System working pressure | 16MPa |
Boom lifting time | 4.8s±0.2s |
Total time | 9.2s±0.5s |
Fuel tank capacity | 80L |
Function of leveling automatically | Yes |
Service brake | Air assist disc brake on 4 wheels |
Parking brake | Flexible shaft operated external drum |
Type specification | 16/70—20 |
