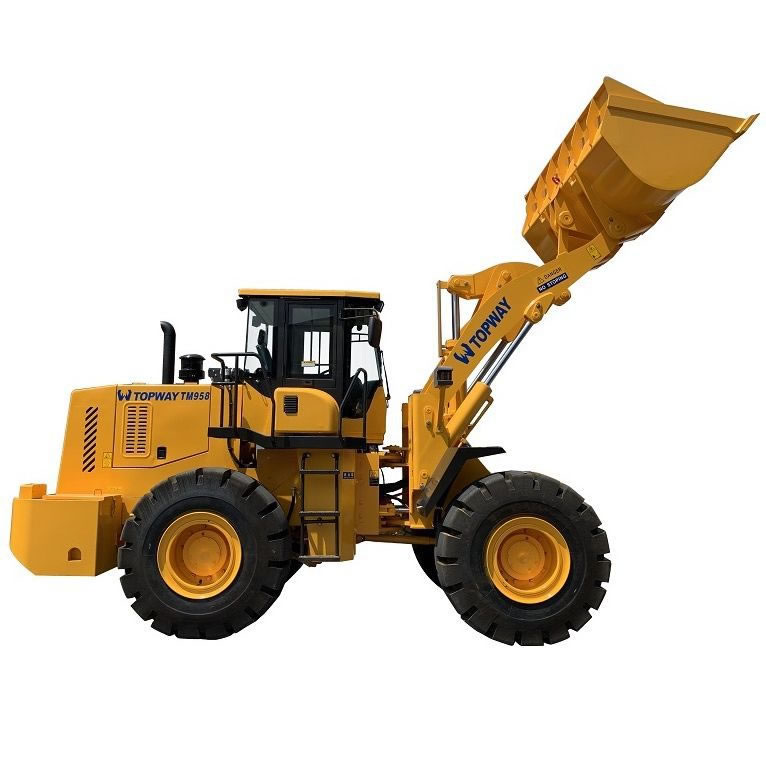

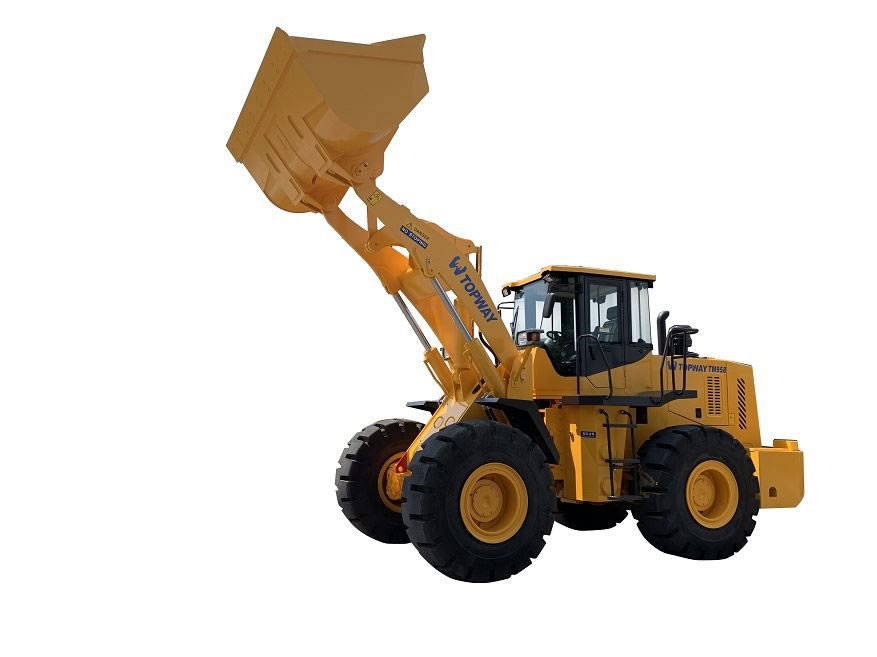

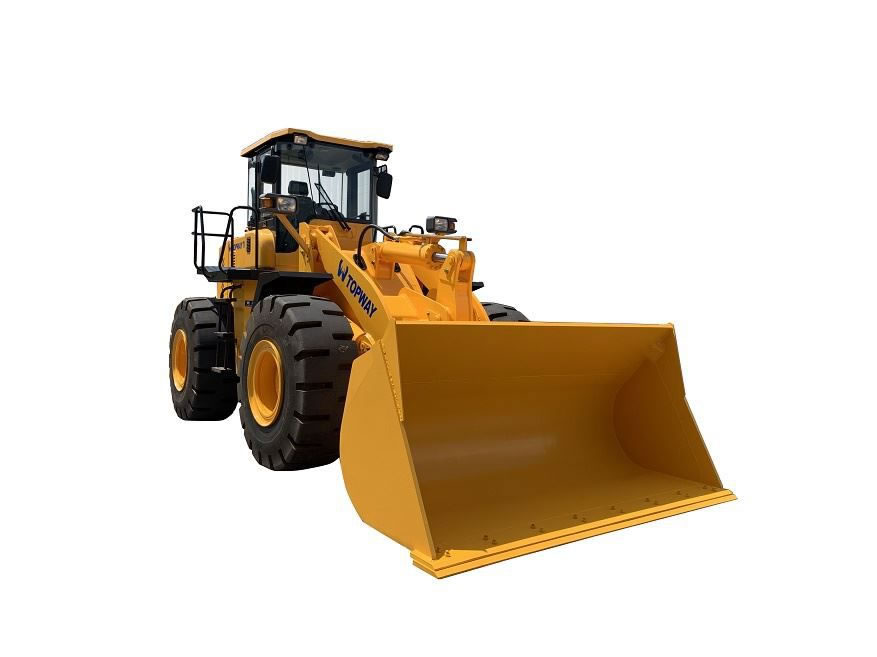

TM958 5.0 Ton 3.0 CBM Wheel Loaders

TM958 5.0 Ton 3.0 CBM Wheel Loaders

One of the best sell model TM958 5.0Ton wheel loader with Weichai or Cummins engine, A/C and Joystick, good stability, high quality, competitive price, very good after sales service
Product Details

One of the best sell model TM958 5.0Ton wheel loader with Weichai or Cummins engine, A/C and Joystick, good stability, high quality, competitive price, very good after sales service


Main Features

This loader With 3100mm wheel base improves the working efficiency to meet the requirement of working in confined space.

The wheel loader install Weichai (WD10G220E21) engine with 2000r/min rated speed and 162kw rated power lessen the rated fuel consumption, Cummins engine for option.

Excellent driving system with patent technology ensure the pay loader working efficiency.

This front end loader with single rocking arm with Z type linkage makes the equipment powerful breakout force.

Z-bar linkage working device featuring high breakout force increases shovel loader working efficiency.

Maintenance-free storage battery of international brand and negative-pole cutting switch are safe and reliable.

The pay loader have unique and novel appearance, independent instrument assemble, driving cab with detachable design to ensure wide operation space, excellent view, comfortable seat.

Multiple optional attachments (such Log Grapple, Grass Grapple. Side dump bucket) meet different requirement of working condition for this front end loader.

Equipped with MP3 and radio, relax and leisure when working.


TM9581


Specifications

Model

TM958

Operating weight

16,500 kg

Rated load

5,000 kg

Bucket capacity

3 m³

Engine model

WEICHAI WD10G220E23

Rated engine power

162KW

Rated rotate speed

2000r/min

Maximum torque

≥745.3N.m

Breakout force

145KN

Driving speed


Forward Ⅰ

0-11.5km/h

Forward Ⅱ

0-38km/h

Reverse Ⅰ

0-16km/h

Grade ability

28°

Overall length

7830mm

Overall width

2870mm

Overall height

3410mm

Wheel base

2900mm

Track base

2260mm

Minimum ground clearance

470mm

Maximum dumping height

3000mm

Maximum dumping reach

1300mm

Raise time

≤6.3s

Total

≤11.5s

Tyre type

23.5-25
