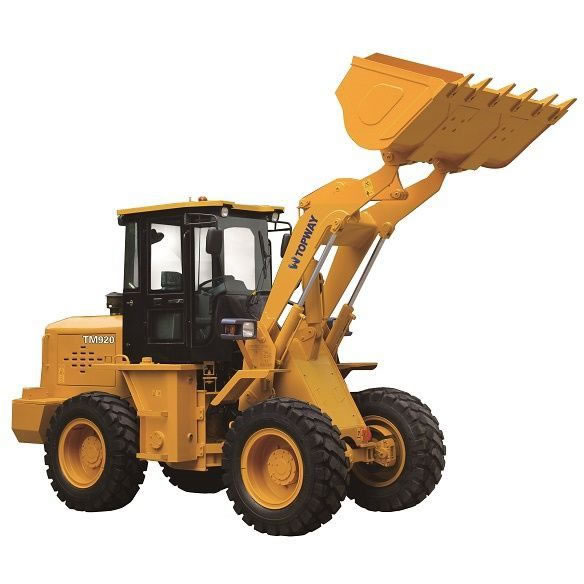

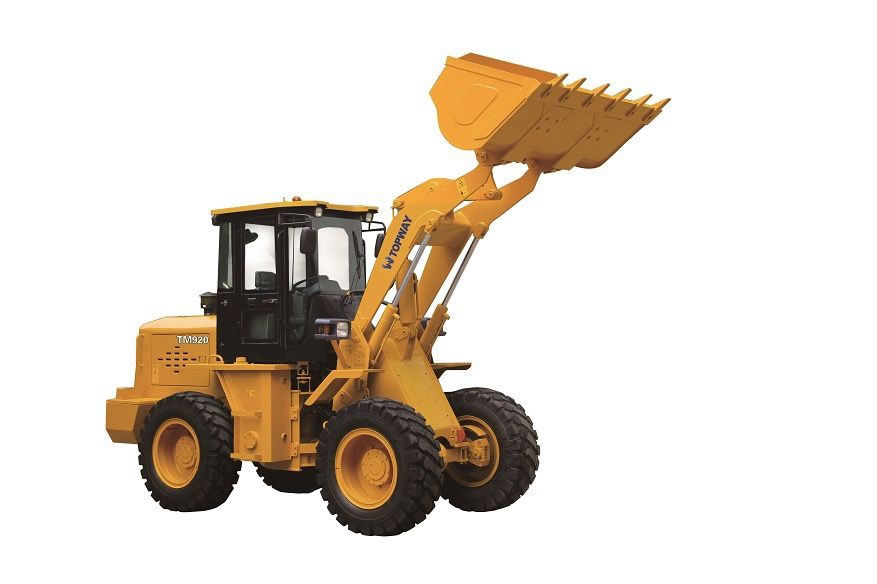

TM920 2.0Ton 1.1CBM wheel loader with YTO engine or Cummins engine, A/C and Joystick, high quality, good stability, Stable performance, cheaper price
Main Features
This wheel loader equips with YTO YT4A2-G77Q diesel engine has the characteristics of powerful performance, strong torque, low noise, low fuel consumption, reliable operation.
The adoption of countershaft power-shift gearbox for this mini loader makes full use of engine power and increases the torque, compact structure.
This pay loader Choose best hydraulic components, easy operation and durable.
This shovel loader have Strong and durable frame, have strong loading capacity, high strength and good stability.
High reliability and safer air push oil disc brake braking system
Integral, luxury instrument board
Luxurious cab, broad vision, easy and comfortable for driving.
According to client's request, customize higher dumping and longer arm products.
Specifications
Items | Technical Specifications | |
Bucket capacity | 1.1m³ | |
Rated load | 2.0t | |
Operating weight | 6.0t | |
Breakout force | ≥55KN | |
Overall dimensions (L*W*H) | 5850*1900*2820mm | |
Wheel base | 2100mm | |
Tread | 1490mm | |
Max. dumping reach | 2700mm | |
Lift time | ≤5s | |
Max. steering angel | 35° | |
Hydraulic system | Working pump | CBGj2050 |
System pressure | 16MPa | |
Control valve | CBD20 | |
Engine | Model | YTR4105 Type |
Rated power/speed | 56kw/2400rpm | |
Axle and Tyre | Main transmission type | Single stage |
Final reducer | Planetary reduction | |
Tyre type | 16/70-20 | |
Transmission system | Torque converter | |
Intake oil pressure | 0.3-0.45MPa | |
Control pressure | 0.10-0.20MPa | |
Gearbox | ||
Type | Fixed axle power shift transmission | |
Forward I | 0-9km/h | |
Forward II | 0-28km/h | |
Reverse | 0-9km/h | |
Brake system | Service brake | Air assisted oil disc type four wheel brake |
Parking brake | Flexible shaft controlled caliper | |
Brake pressure | 0.70-0.78MPa |
