18 Ton Block Handling Wheel Loaders

18 Ton Block Handling Wheel Loaders

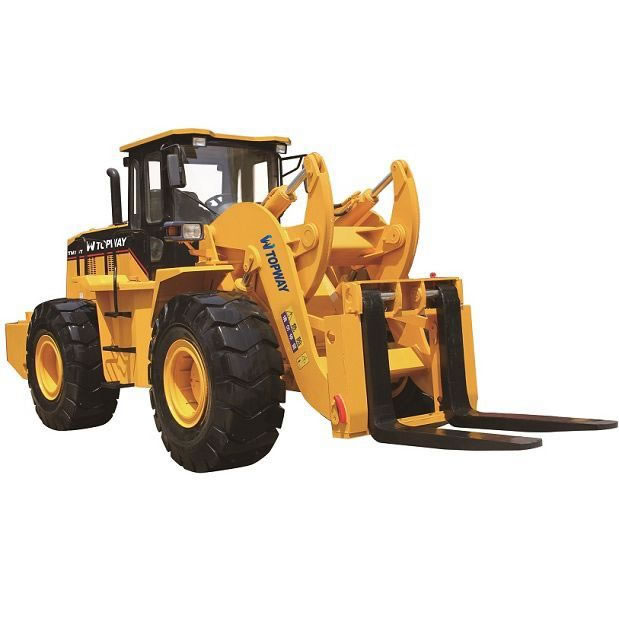

​TM18T 18Ton block handling wheel loader specially for quarry to handle stone block, Komatsu WA470 wheel loader frame, Mainly used in marble or granite quarries or stockyard for block loading, unloading and stacking operations, good quality and high efficiency
Product Details

TM18T 18Ton block handling wheel loader specially for quarry to handle stone block, Komatsu WA470 wheel loader frame, Mainly used in marble or granite quarries or stockyard for block loading, unloading and stacking operations, good quality and high efficiency


Main Features

Forklift loader engine: Weichai low rated rotate speed Engine, strong power, energy conservation and environmental protection. Cummins engine, Shangchai engine is optional.

Safety for block handling wheel loader : The brake system adopts a constant temperature cooling device with independent research and development patent technology to ensure stable, safe and reliable braking.

Humanized design: With joystick, professional air conditioning, Cab heightening design creates a comfortable operating environment.

Forklift front end loader structural parts: The comprehensive steel plate is thickened, the height of the chassis off the ground and the departure angle are increased, and it is suitable for various harsh environments. It is easier to mine the materials and stabilize the operation.

Granite marble quarry stone handling pay loader with the single rocker arm structure produces a larger excavation force, and the Z-form structure specially designed for stone working conditions has strong bearing capacity.

Depending on the working conditions, ultra short wheelbase, short wheelbase and long wheelbase are available.

The boom with four boom plates of the double rocker arm effectively solves the problem of poor driver's line of sight.

Stone handling shovel loader hydraulic systems: To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively. Independent transmission and hydraulic cooling improve the hydraulic system stability


TM18T(001)


Main Specifications

Model

TM18T

Operating weight

21,000kg

Rated load

18,000 KG

Engine model

WD10G220E223

Rated power

162KW

Rated rotate speed

2000r/nin

Max. torque

745.3N.m

Driving speed


Forward Ⅰ

0-11.5km/h

Forward Ⅱ

0-36km/h

ReverseⅠ

0-16km/h

Gradeability

20°

Turning angle

35°±1°

Min. turning radius

6822mm

Overall length

8000mm

Overall width

2870mm

Overall height

3220mm

Wheel base

3230mm

Track base

2300mm

Torque converter

Single stage, 4 elements

Transmission

Planetary type

Raise time

13.5s

Tyre

23.5-25
