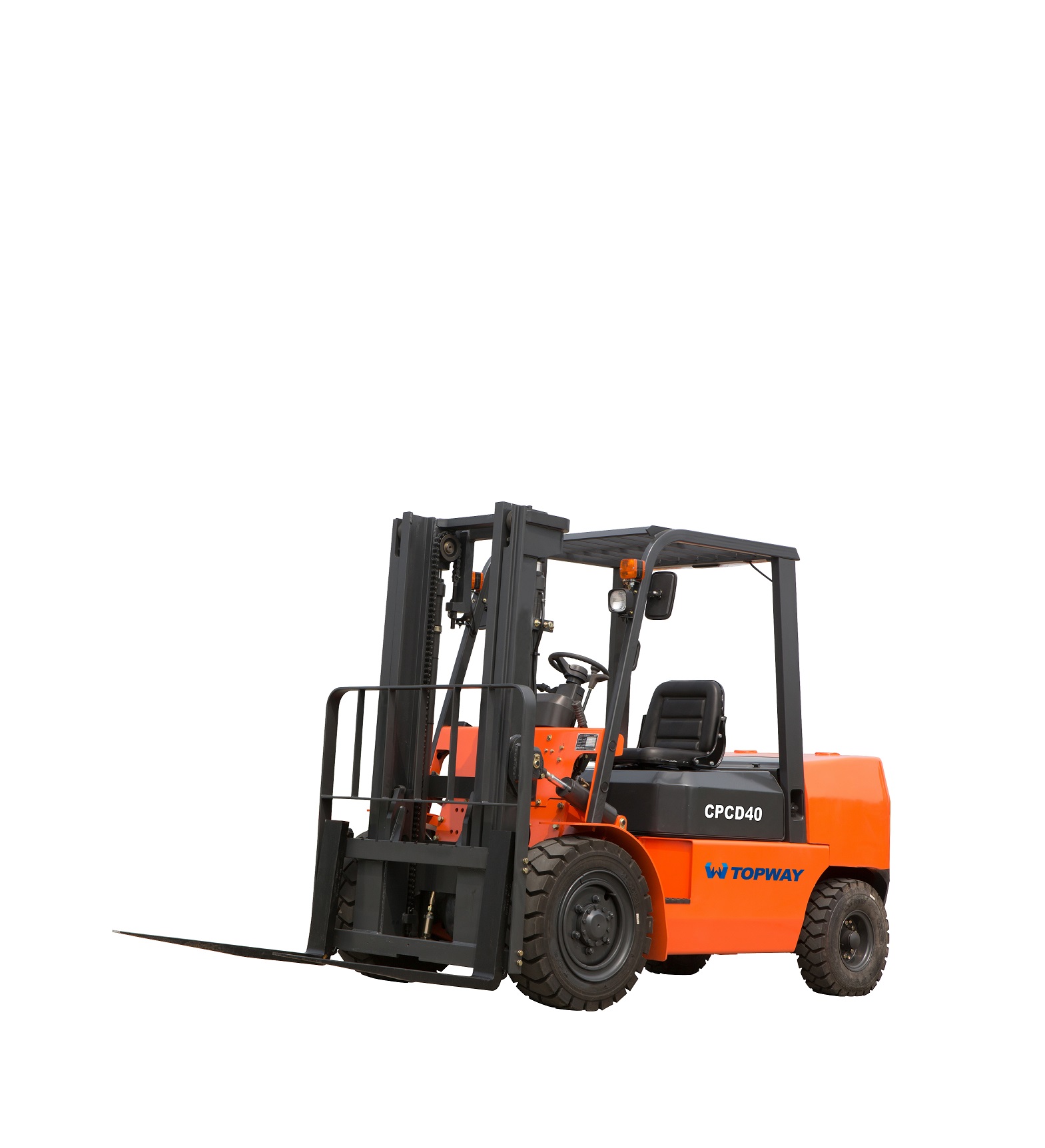

4Ton and 4.5Ton Diesel Forklift

Main Features:

Equipped with first class drive system and TCM technology gearbox

With aluminum radiator to achieve outstanding heat dissipation effect

Air intake system installed at high level, prevent the dust enter the engine, extend the engine working life

With adjustable seat and steering wheel, enlarge the working space, comfortable working environment

Streamlined design of the balance weight makes the attractive and unique appearance

Big opening angle of the hood, easy maintenance

Product Details

4Ton and 4.5Ton Diesel Forklift Specifications:

Model		Unit	CPCD40	CPCD45
Load Capacity		Kg	4000	4500
Load Center		mm	500	500
Mast Lifting height		mm	3000	3000
Mast Free Lift		mm	135	150
Mast lifting Speed (With Load)		mm/s	470	355
Mast tilt (Front/Rear )			6°/ 12°	6°/ 12°
Driving Speed		km/h	20	20
Turning Radius		mm	2835	2750
Ground clearance		mm	212	150
Form Size	Length to face of forks	mm	2950	3100
	Overall width	mm	1250	1480
	Height of overhead guard (cabin)	mm	2090	2265
	Height of mast, extended	mm	4030	4200
Wheelbase		mm	1900	2000
Tread	Fron	mm	1160	1180
Tread	Rear	mm	1065	1190
Overhang (front)		mm	490	545
Fork		mm	50x150x1070	50x150x1070
Service Weight		kg	5205	6460
