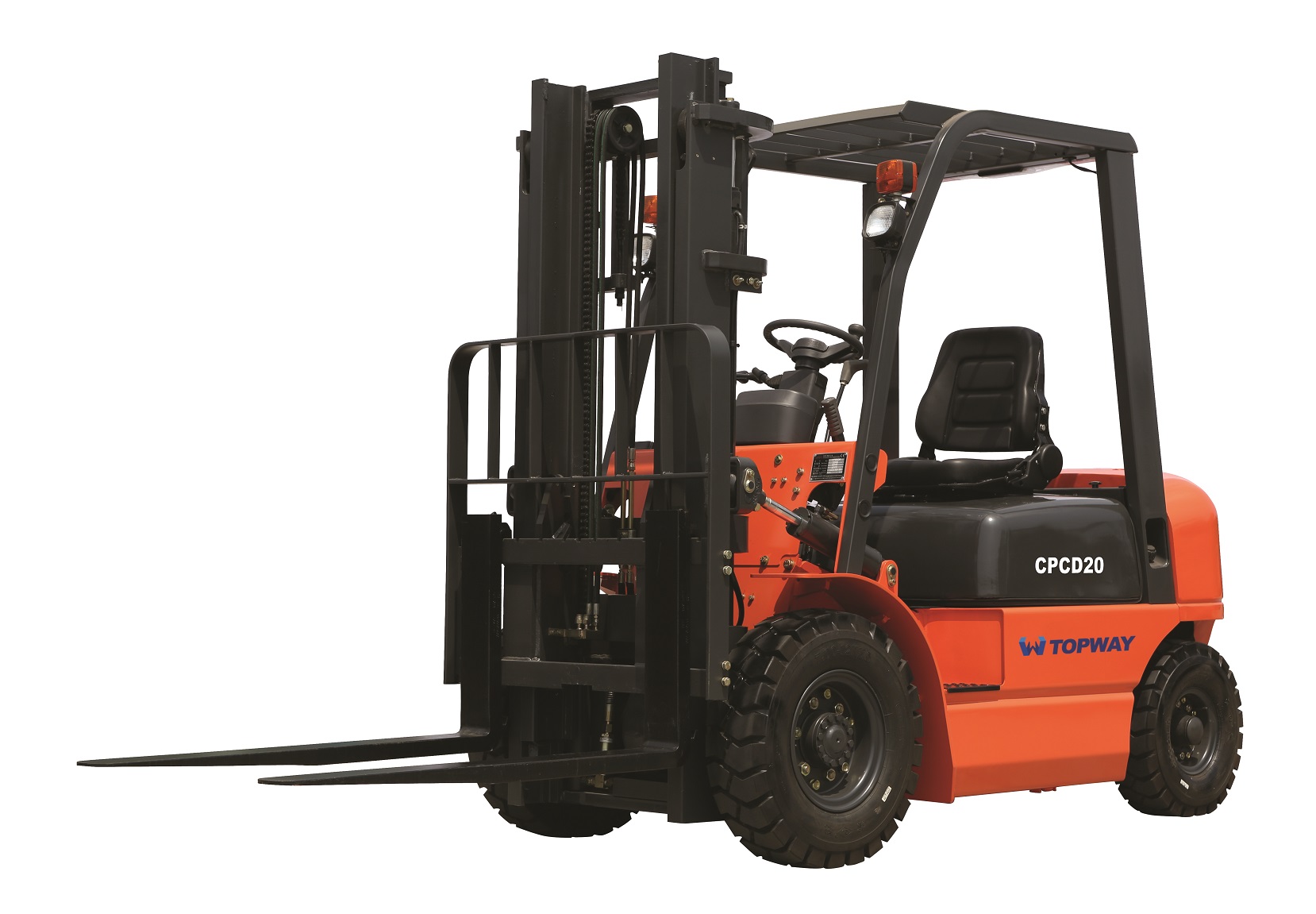

2Ton to 3.5Ton Diesel Forklift

Main Features:

Equipped with first class drive system and TCM technology gearbox

With aluminum radiator to achieve outstanding heat dissipation effect

Air intake system installed at high level, prevent the dust enter the engine, extend the engine working life

With adjustable seat and steering wheel, enlarge the working space, comfortable working environment

Streamlined design of the balance weight makes the attractive and unique appearance

Big opening angle of the hood, easy maintenance

Product Details

2Ton to 3.5Ton Diesel Forklift Specifications:

Model		Unit	CPCD20	CPCD25	CPCD30	CPCD35	CPCD38
Load Capacity		Kg	2000	2500	3000	3500	3800
Load Center		mm	500	500	500	500	500
Mast Lifting height		mm	3000	3000	3000	3000	3000
Mast Free Lift		mm	160	160	165	165	135
Mast lifting Speed (With Load)		mm/s	500	500	450	420	430
Mast tilt (Front/Rear )			6°/ 12°	6°/ 12°	6°/ 12°	6°/ 12°	6°/ 12°
Driving Speed		km/h	19.5	19.5	19	18.5	19.9
Turning Radius		mm	2170	2245	2465	2500	2835
Ground clearance		mm	115	115	140	140	212
Form Size	Length to face of forks	mm	2485	2560	2744	2779	2950
	Overall width	mm	1160	1160	1220	1220	1250
	Height of overhead guard (cabin)	mm	2070	2070	2090	2090	2090
	Height of mast, extended	mm	4030	4030	4260	4260	4030
Wheelbase		mm	1600	1600	1740	1740	1900
Tread	Fron	mm	970	970	1000	1000	1160
Tread	Rear	mm	970	970	970	970	1065
Overhang (front)		mm	465	465	474	474	490
Fork		mm	40x122x1070	40x122x1070	40x120x1070	40x120x1070	50x150x1070
Service Weight		kg	3510	3730	4300	4560	5070

Engine information:

Optional equipments (Additional price needed)

Side shifter

Triplex mast, fully free lift mast and container mast

Up to 6000mm lift height

Brick clamp

Bucket

Blade

Paper roll clamp
