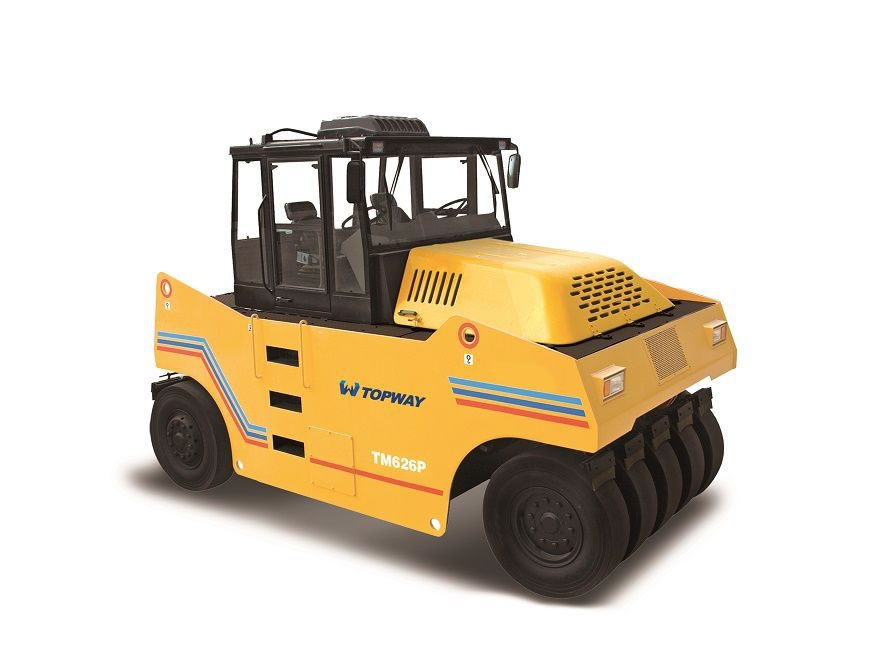

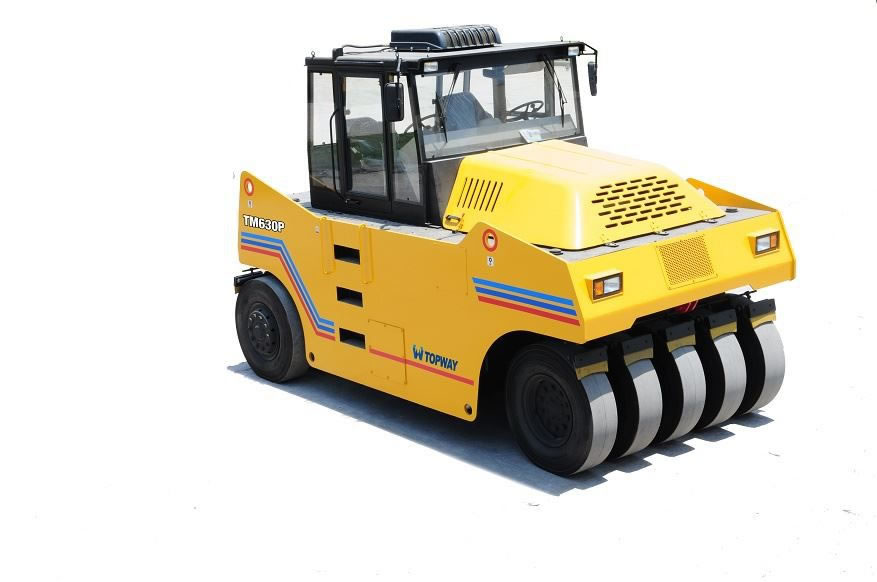

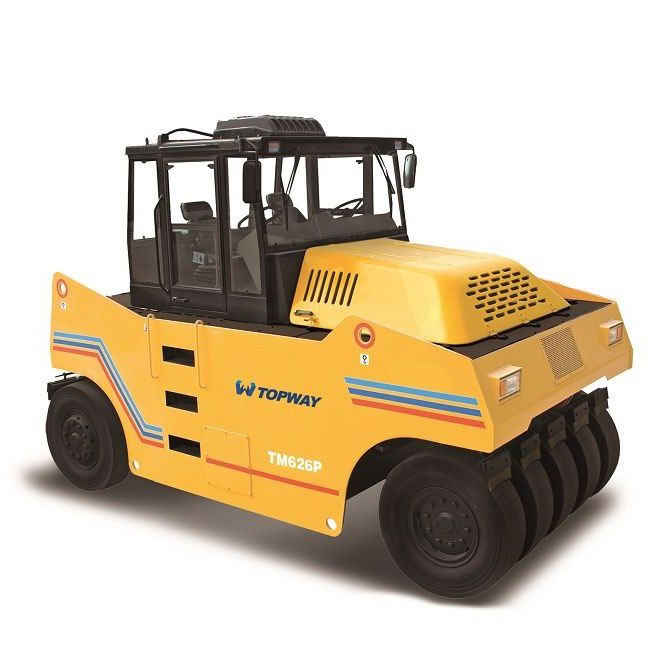

TM620P 20Ton, TM626P 26Ton, TM626PH 26Ton, TM630P30Ton series pneumatic road roller, a type of static roller, is designed and built for compacting high grade asphalt road surface, mixed earth, macadam layer and roadbed.
Main Features
1. The pneumatic road roller applied with the synchronizer-equipped transmission specially designed for the large-tonnage roller for TM620P and TM626P, enjoying a handy, flexible and reliable transmission gearshift.
2. The pneumatic roller applied with the power gearshift transmission with hydraulic converter for TM626PH and XG630P pneumatic tyred rollers, thus providing high performance in starting and parking buffer.
3. The road roller applied with the special pneumatic tyres to compact the placement.
4. The pneumatic roller wobbler mechanism applied for front wheels, making the roller tyre contact the ground uniformly when operating on the uneven ground.
5. The road roller is driven by combination of the drive shaft and the counter shaft. The steering, speed change and reversing can all be done by combination of the drive shaft and counter shaft.
Main Specifications
Description | Unit | TM620P | TM626P | TM626PH | TM630P | |
Max. Operating Weight | kg | 20000 | 26000 | 26000 | 29500 | |
Weight of Counter Weighted Sand | kg | 7800 | 10660 | 10660 | 14550 | |
Min. Operating Weight | kg | 11200 | 14500 | 14500 | 19000 | |
Compaction Width | mm | 2260 | 2750 | 2750 | 2750 | |
Ground Specific Pressure | Kpa | 200~360 | 200~360 | 200~360 | 300~460 | |
Min. Turning Radius | mm | 7800 | 9000 | 9000 | 9000 | |
Min. Ground Clearance | mm | 270 | 300 | 300 | 300 | |
Theoretical Gradeability | % | 20 | 20 | 20 | 20 | |
Wheelbase | mm | 3550 | 3836 | 3836 | 3836 | |
Travel Speed | I | km/h | 4(F/R) | 3.5(F/R) | 3.5~6.5(F/R) | 3.5~7(F/R) |
II | km/h | 7.3(F/R) | 6.6(F/R) | 7~15.5(F/R) | 7~16(F/R) | |
III | km/h | 16.5(F) | 15(F) | - | - | |
Engine | Brand | Yuchai | Cummins | Cummins | Cummins | |
(Cummins) | ||||||
Model | YC6B125 | 6BT5.9 | 6BT5.9 | 6BTA5.9 | ||
（6BT5.9） | ||||||
Rated power | kW | 92 | 100 | 100 | 128 | |
(100) | ||||||
Rated speed | rpm | 2200 | 2000 | 2000 | 2100 | |
Overall Dimension (L×W×H) | mm | 4620×2260×3335 | 4906×2800×3330 | 4906×2800×3330 | 4906×2800×3330 | |
