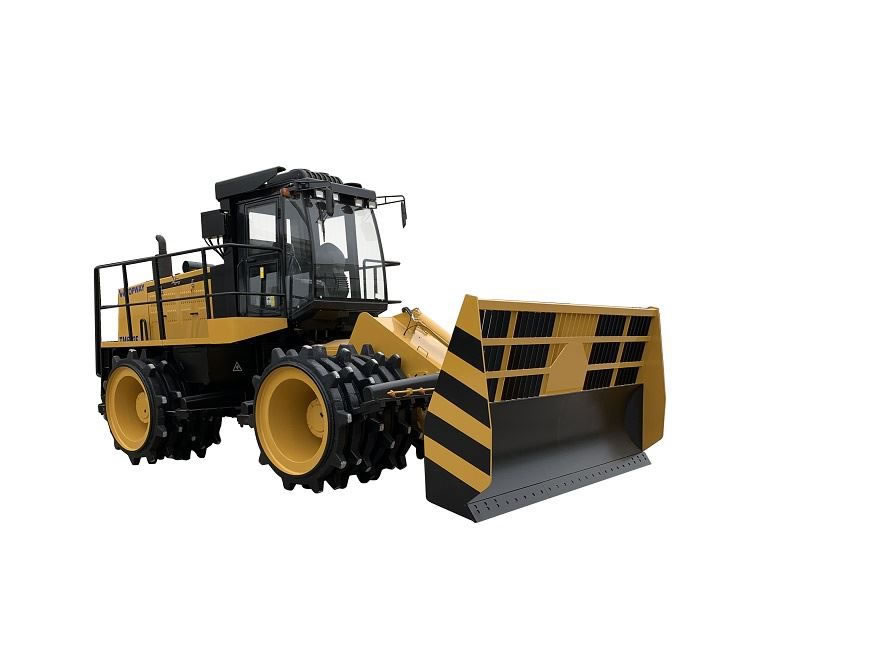

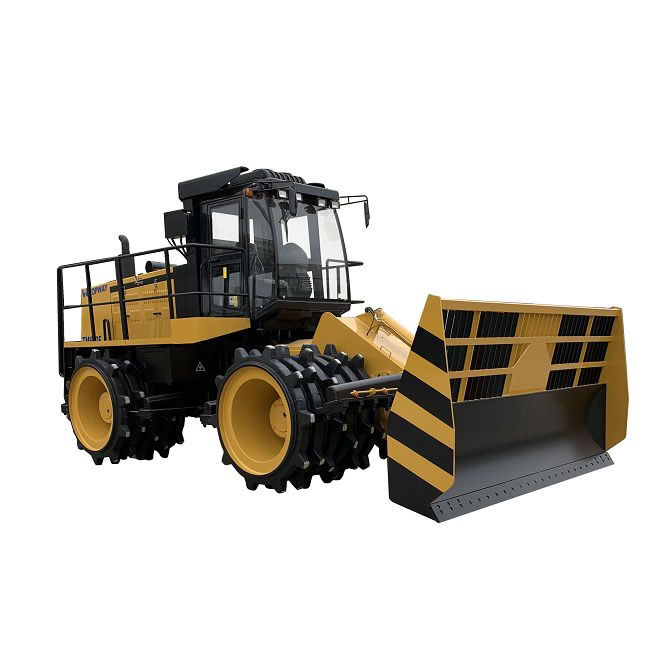

TM632F Landfill compactor designed to deliver outstanding performance and maximum uptime in the toughest environments, this recycling compactor and solid waste compactor delivers a level of reliability, performance, safety, operator comfort, serviceability and efficiency
Main Features
1. The landfill compactor equipped with the Cummins QSM11 engine
2. This solid waste compactor equipped with hydraulic transmission system on four wheels with four motors independently controlled by four pumps
3. The recycling compactor equipped with imported central lubrication system, which can automatically lubricate at preset interval and volume
4. The landfill handler equipped with the spraying device which can spray the pesticide to kill the pests and the bacteria
5. The fully-enclosed box-shape frame structure can effectively prevent the trash from entering into the inside of the machines
Main Specifications
Description | Unit | TM632F | |
Operating Weight | kg | 32000 | |
Front Wheel Distributing Weight | kg | 16000 | |
Real Wheel Distributing Weight | kg | 16000 | |
Travel Speed | F/R I | km/h | 0-4/0-4 |
F/R II | km/h | 0-11.5/0-11.5 | |
Min. Turning Radius(Bucket Outer) | mm | 9000 | |
Theory Max. Gradeability | % | 100 | |
Static Linear Load(F/R) | N/cm | 1269/1532 | |
Ground Clearance | mm | 610 | |
Max. Thrust | KN | 320 | |
Wheelbase | mm | 3500 | |
Blade Adjustment Range | Higher ground | mm | 1200 |
Under ground | mm | 200 | |
Drive Type | Hydraulic transmission | ||
Brake Type | Hydrostatic、Multi-disc、Mechanical | ||
Frame Structure | Oscillating articulation | ||
Turning Type | Hydraulic | ||
Turning Angle | ° | ±40 | |
Swing Angle | ° | ±15 | |
Engine | Model | QSM11 | |
Rated power | kW | 261 | |
Rated speed | rpm | 2100 | |
Dimension of Compacting Wheel | Front wheel | mm | 1620×1350 |
Rear wheel | mm | 1620×1120 | |
Landfill Pushing Plate Size(W×H) | mm | 3800×1930 | |
Working Efficiency | t/h | ≥100 | |
Compacting Density | t/m3 | ≥1.0 | |
Overall Dimension(L×W×H) | 8090×3800×3755 |
