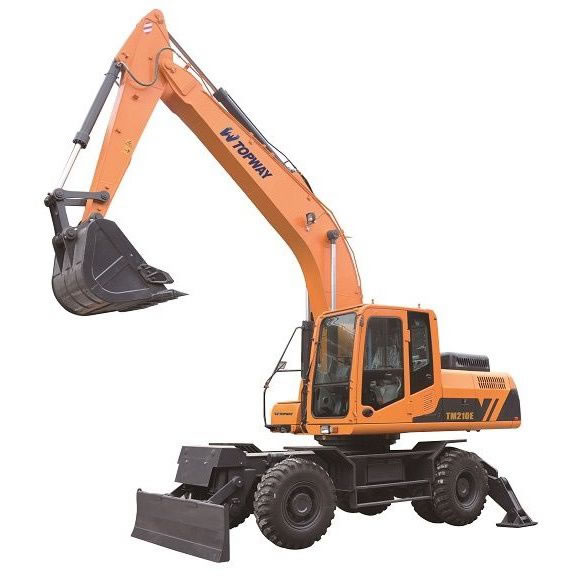

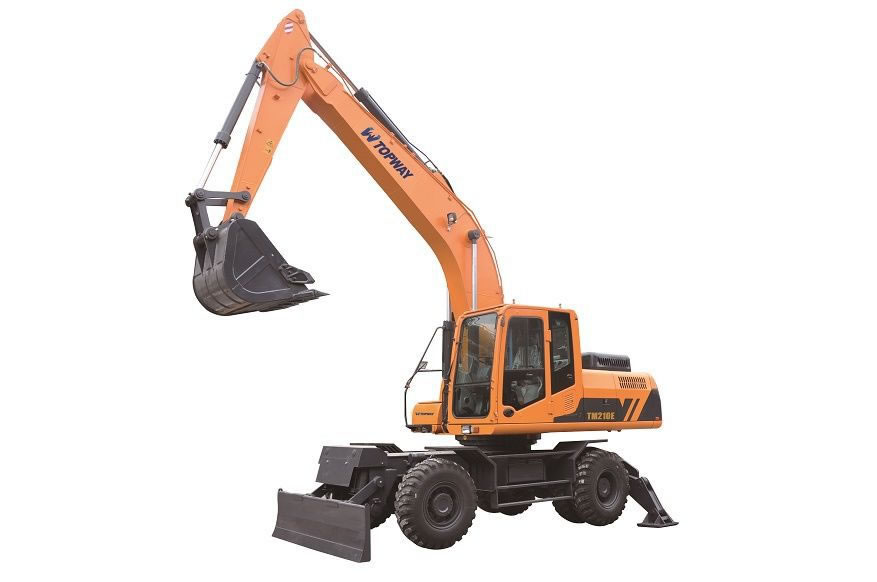

1.0 Cubic Meter Wheel Excavators

1.0 Cubic Meter Wheel Excavators

TM210E 21Ton wheel excavator adopt advanced and mature hydraulic technology, widely used in water conservancy and power construction, mining, road construction, airport and port construction, urban building construction, municipal construction and pipeline auxiliary projects, easy operation, convenient move, high quality, low price and easy maintenance.
Product Details

TM210E 21Ton wheel excavator adopt advanced and mature hydraulic technology, widely used in water conservancy and power construction, mining, road construction, airport and port construction, urban building construction, municipal construction and pipeline auxiliary projects, easy operation, convenient move, high quality, low price and easy maintenance.


Main Features

1. TM210E wheeled excavator equipped with originally imported Cummins engine features Euro II emission standards, strong power and intake heating system.

2. International famous hydraulic components for this digger ensures high reliability of the hydraulic system

3. This backhoe uses high resolution LCD instruments for excellent legibility, enhanced one-piece chassis features high strength and durability.

4. The cab uses anti-rollover and falling objects protection devices which meet the safety standards in various regions including China, EU, North America, etc. And the cab has gained TOPS and FOPS certification.

5. The large cooling device for this hydraulic excavator (in series and in parallel) has high adaptability, which ensures strong power in high temperature environment.

6. The engine hood and compartment covers for this hydraulic wheel excavator are easy to open for convenient daily maintenance.

7. Easy to change attachments for this excavator, just like breaker, log grapple, stone clamp, auger drill and so on


TM210E(002)


Main Specifications

Model

TM210E

Operating Weight (Tons)

21.5

Standard Bucket Capacity (m3)

0.9

Engine Manufacturers

Cummins

Model

QSB6.7

Engine Power (kw)

129

Hydraulic Flow (L/min)

2*200

The Hydraulic Pressure (Mpa)

30

Walking Speed (Km/h)

28

Climbing Ability (%)

40%

Rotary Speed (r/min)

12.5

Arm Digging Force (kN)

90

The Bucket Digging Force (kN)

120

Overall Length (mm)

9550

Overall Width (mm)

2760

Overall Height of Boom (mm)

3585

Overall Height of Cabin (mm)

3260

Overall Height to The Engine Cocer (mm)

2685

Counterweight Clearance (mm)

1435

Ground Clearance (mm)

320

Upperstructure Width (mm)

2685

Wheel Base (mm)

2960

Overall Width of Blade (mm)

2700

Overall Height of Blade (mm)

700

Front Overhang (mm)

1345

Overall Width with Outrigger Extended (mm)

3835

Stick Length (mm)

2600

Maximum Cutting Height (mm)

9665

Maximum Dumping Height (mm)

6900

Maximum Digging Depth (mm)

6915

Maximum Reach (mm)

9615
