13 Ton Wheel Excavators

13 Ton Wheel Excavators

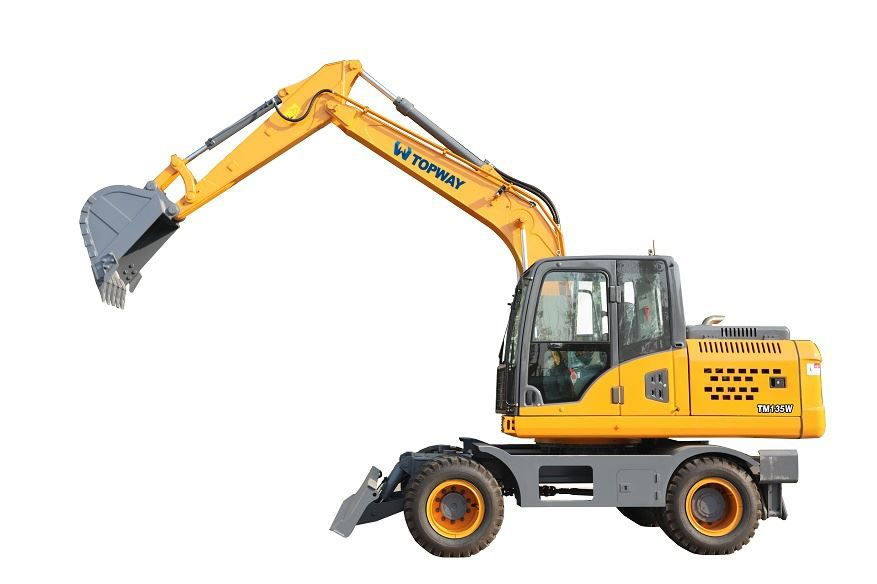

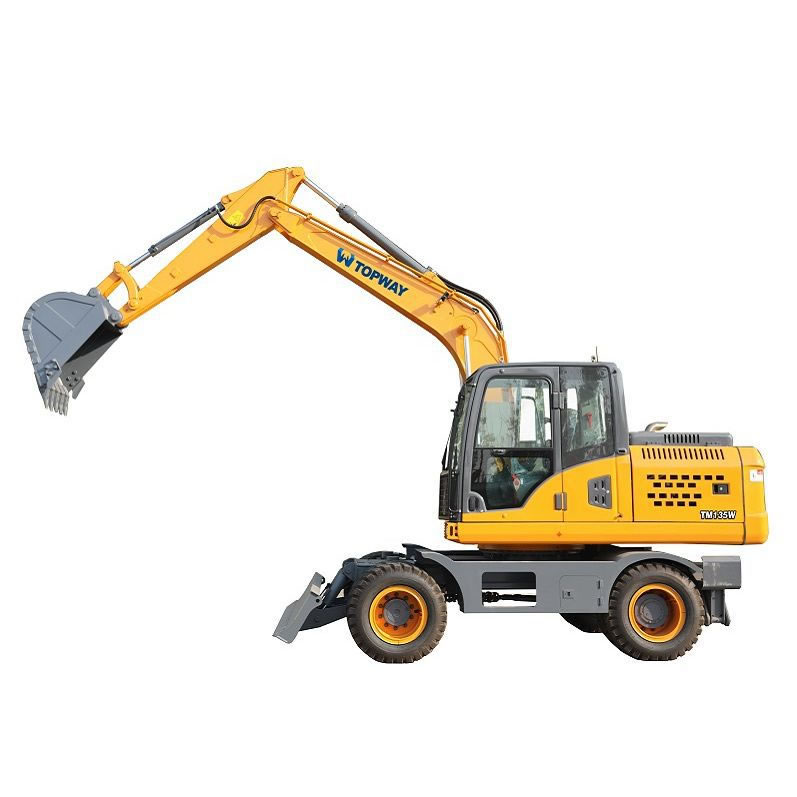

TM135W 13ton wheel excavator with Cummins engine, Kawasaki hydraulic parts, this digger, backhoe are widely used in water conservancy and power construction, mining, road construction, airport and port construction, urban building construction, municipal construction and pipeline auxiliary projects, easy operation, convenient move, high quality, low price and easy maintenance.
Product Details

TM135W 13ton wheel excavator with Cummins engine, Kawasaki hydraulic parts, this digger, backhoe are widely used in water conservancy and power construction, mining, road construction, airport and port construction, urban building construction, municipal construction and pipeline auxiliary projects, easy operation, convenient move, high quality, low price and easy maintenance.


Main Features

1. TM135W hydraulic excavator is a new generation of fully hydraulic wheeled excavator. It adopts high-power and low-fuel consumption Cummins engine to ensure the strong power and power reserve of the whole machine.

2. The accurate matching of the high-efficiency hydraulic system and the bridge box of this digger ensures the working state and running state The hydraulic system of the whole machine is matched with imported hydraulic components, which has the characteristics of "high reliability, authenticity, safety and environmental protection, comfort and convenience".

3. Easy to change attachments for this excavator, just like breaker, log grapple, stone clamp, auger drill and so on


TM135M


Main Specifications

Model

TM135W

Shipping Length(mm)

7350

Shipping Height(mm)

3005

Overall Width(mm)

2520

Tail Swing Radius(mm)

2390

Wheelbase(mm)

2600

Wheel Tread(mm)

2000

Tyre Type

9.00-20

Max dig Height(mm)

7637

Max dump Height(mm)

6240

Max dig Depth(mm)

4347

Max dig Radius(mm)

7654

Engine

Cummins 92KW/2000rpm

Hydraulic System pressure

28Mpa

Hydraulic System flow

130*2L/min

Bucket Volume(m3)

0.53

Bucket digging force(KN)

85

Arm digging force(KN)

53

Rotation Speed(r/min)

13-14

Travel Speed(km/h)

28

Approximate Weight(kg)

13500
