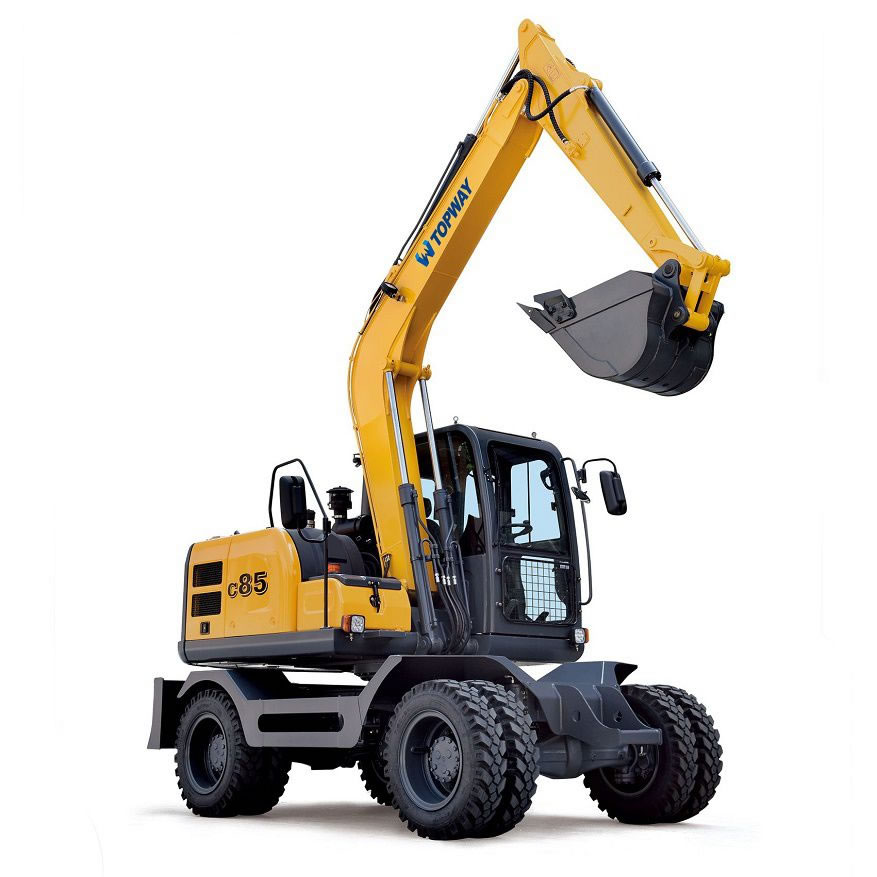

C85W 8Ton hydraulic wheel excavator Yuchai engine, the digger, backhoe are widely used in small construction site, forest, quarry, garden and so on, easy operation, convenient move, high quality, low price and easy maintenance
Main Features
1. The hydraulic wheel excavator have superior performance, reliable quality, low noise, low vibration and stable operation.
2. Customized version of the national three high-performance Yuchai engine, suitable for a variety of mining and mining, energy saving and environmental protection.
3. This excavator have customized version of reinforced drive axle, stable transmission and high reliability.
4. The hydraulic excavator equipped with a combination of automotive-grade LED lamps to illuminate the larger world.
5. Independent heat-dissipating air conditioner for the wheel digger can achieve rapid cooling and excellent effect, the newly upgraded cab adopts ergonomic principles to optimize the overall control layout.
6. The wheel digger newly developed the upper and lower frame, adopting D-shaped large cross-section side beam structure for higher strength, the stability of the whole machine is better.
7. The all-aluminum multi-function air storage cylinder can realize one-key drainage, inflating and cleaning the car body.
8. Reasonable space layout, maintenance is more convenient and quick.
9. Integral casting type rear counterweight for this backhoe, the whole machine is more beautiful and generous, and the operation is more stable and reliable.
10. Silent muffler system, with lower noise, more comfortable operation, and more conducive to city and night operations.
11. The layout of the center of gravity of the whole machine is more reasonable, realizing 360-degree stable operation.
12. Easy to change attachments for this excavator, just like breaker, log grapple, stone clamp, auger drill and so on
Main Specifications
Model | C85W |
Engine Model | Yuchai 4DK |
Rated power/speed | 56kw/2200rpm |
Operating weight | 8300kg |
Bucket capacity | 0.3-0.45 |
Set pressure with main spill vale | 25MPa |
Max. Digging Force | 45KN |
Gradeability | 35° |
Max. Traction Force | 50KN |
Max. travel speed | 30km/h |
Swing Speed of Platform | 11rpm |
Fuel tank | 180L |
Hydraulic oil tank | 165L |
Length | 6020mm |
Width | 2250mm |
Height | 2910mm |
Wheel base | 2500mm |
Tyre | 750-20 |
Tyre contact width | 490mm |
Tread | 1755mm |
Min. ground clearance | 328mm |
Dozer width | 2250mm |
Max. dozer rise height | 500mm |
Max. dozer decline height | 85mm |
Bucket width | 720mm |
Max. digging reach | 6800mm |
Max. digging depth | 3980mm |
Max. digging height | 7410mm |
Max. dumping height | 5290mm |
Min. front swing diameter | 2115mm |
Min. rear swing diameter | 1945mm |
